Cycle Analytics

Introduced in GitLab 8.12. Further features were added in GitLab 8.14.

Cycle Analytics measures the time it takes to go from an idea to production for each project you have. This is achieved by not only indicating the total time it takes to reach at that point, but the total time is broken down into the multiple stages an idea has to pass through to be shipped.

Cycle Analytics is that it is tightly coupled with the GitLab flow and calculates a separate median for each stage.

Overview

You can find the Cycle Analytics page under your project's Pipelines ➔ Cycle Analytics tab.

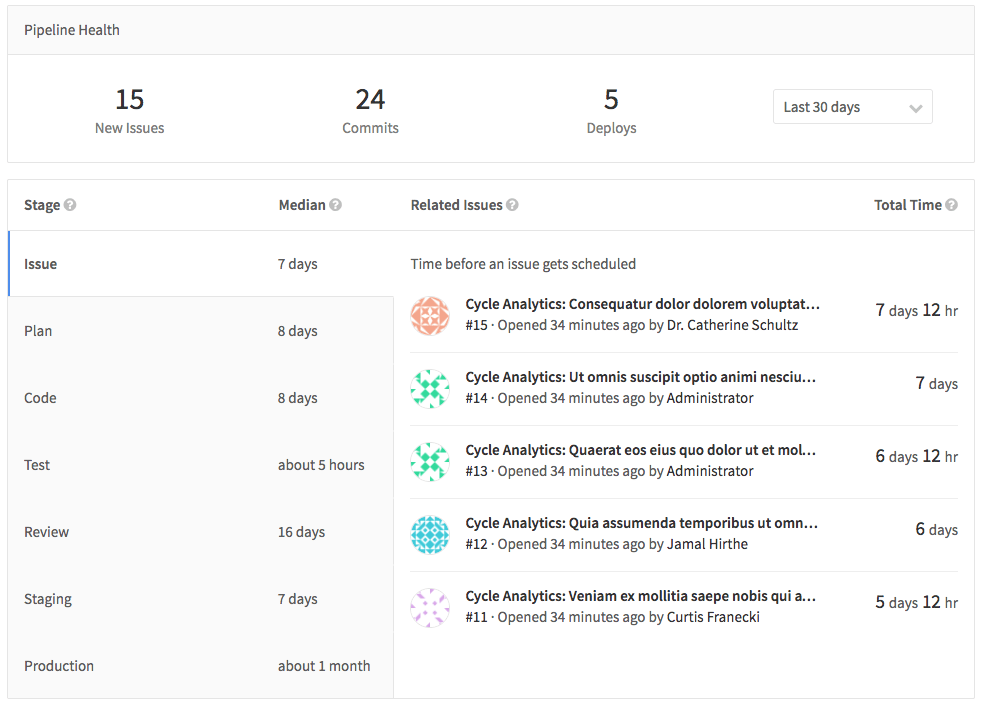

Cycle Analytics landing page

You can see that there are seven stages in total:

How the data is measured

Cycle Analytics records cycle time and data based on the project issues with the exception of the staging and production stages, where only data deployed to production are measured.

Specifically, if your CI is not set up and you have not defined a production or production/* environment, then you will not have any data for those stages.

Below you can see in more detail what the various stages of Cycle Analytics mean.

Stage Description
Issue Measures the median time between creating an issue and taking action to solve it, by either labeling it or adding it to a milestone, whatever comes first. The label will be tracked only if it already has an Issue Board list created for it.
Plan Measures the median time between the action you took for the previous stage, and pushing the first commit to the branch. The very first commit of the branch is the one that triggers the separation between Plan and Code, and at least one of the commits in the branch needs to contain the related issue number (e.g., #42). If none of the commits in the branch mention the related issue number, it is not considered to the measurement time of the stage.
Code Measures the median time between pushing a first commit (previous stage) and creating a merge request (MR) related to that commit. The key to keep the process tracked is to include the issue closing pattern to the description of the merge request (for example, Closes #xxx, where xxx is the number of the issue related to this merge request). If the issue closing pattern is not present in the merge request description, the MR is not considered to the measurement time of the stage.
Test Measures the median time to run the entire pipeline for that project. It's related to the time GitLab CI takes to run every job for the commits pushed to that merge request defined in the previous stage. It is basically the start->finish time for all pipelines. master is not excluded. It does not attempt to track time for any particular stages.
Review Measures the median time taken to review the merge request, between its creation and until it's merged.
Staging Measures the median time between merging the merge request until the very first deployment to production. It's tracked by the environment set to production or matching production/* (case-sensitive, Production won't work) in your GitLab CI configuration. If there isn't a production environment, this is not tracked.
Production The sum of all time (medians) taken to run the entire process, from issue creation to deploying the code to production.

Here's a little explanation of how this works behind the scenes:

  1. Issues and merge requests are grouped together in pairs, such that for each <issue, merge request> pair, the merge request has the issue closing pattern for the corresponding issue. All other issues and merge requests are not considered.
  2. Then the pairs are filtered out by last XX days (specified by the UI - default is 90 days). So it prohibits these pairs from being considered.
  3. For the remaining <issue, merge request> pairs, we check the information that we need for the stages, like issue creation date, merge request merge time, etc.

To sum up, anything that doesn't follow the GitLab flow won't be tracked at all. So, the Cycle Analytics dashboard won't present any data:

Example workflow

Below is a simple fictional workflow of a single cycle that happens in a single day passing through all seven stages. Note that if a stage does not have a start/stop mark, it is not measured and hence not calculated in the median time. It is assumed that milestones are created and CI for testing and setting environments is configured.

  1. Issue is created at 09:00 (start of Issue stage).
  2. Issue is added to a milestone at 11:00 (stop of Issue stage / start of Plan stage).
  3. Start working on the issue, create a branch locally and make one commit at 12:00.
  4. Make a second commit to the branch which mentions the issue number at 12.30 (stop of Plan stage / start of Code stage).
  5. Push branch and create a merge request that contains the issue closing pattern in its description at 14:00 (stop of Code stage / start of Test and Review stages).
  6. The CI starts running your scripts defined in .gitlab-ci.yml and takes 5min (stop of Test stage).
  7. Review merge request, ensure that everything is OK and merge the merge request at 19:00. (stop of Review stage / start of Staging stage).
  8. Now that the merge request is merged, a deployment to the production environment starts and finishes at 19:30 (stop of Staging stage).
  9. The cycle completes and the sum of the median times of the previous stages is recorded to the Production stage. That is the time between creating an issue and deploying its relevant merge request to production.

From the above example you can conclude the time it took each stage to complete as long as their total time:

A few notes:

Permissions

The current permissions on the Cycle Analytics dashboard are:

You can read more about permissions in general.

More resources

Learn more about Cycle Analytics in the following resources:
