Protected Branches

Permissions in GitLab are fundamentally defined around the idea of having read or write permission to the repository and branches. To prevent people from messing with history or pushing code without review, we've created protected branches.

Overview

By default, a protected branch does four simple things:

See the Changelog section for changes over time.

Additional functionality for GitLab Enterprise Edition:

Configuring protected branches

To protect a branch, you need to have at least Master permission level. Note that the master branch is protected by default.

  1. Navigate to the main page of the project.
  2. In the upper right corner, click the settings wheel and select Protected branches.

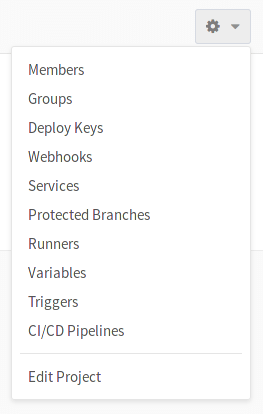

    Project settings list

  3. From the Branch dropdown menu, select the branch you want to protect and click Protect. In the screenshot below, we chose the develop branch.

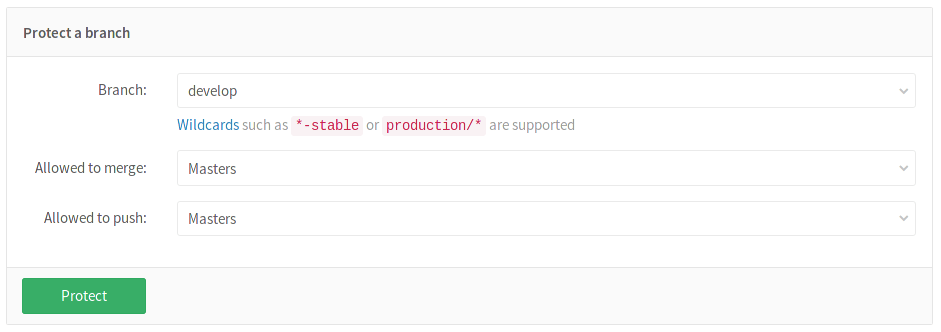

    Protected branches page

  4. Once done, the protected branch will appear in the "Protected branches" list.

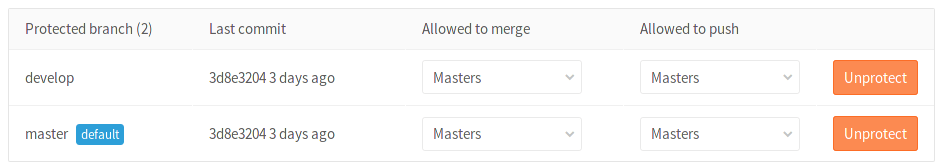

    Protected branches list

Using the Allowed to merge and Allowed to push settings

Introduced in GitLab 8.11.

Since GitLab 8.11, we added another layer of branch protection which provides more granular management of protected branches. The "Developers can push" option was replaced by an "Allowed to push" setting which can be set to allow/prohibit Masters and/or Developers to push to a protected branch.

Using the "Allowed to push" and "Allowed to merge" settings, you can control the actions that different roles can perform with the protected branch. For example, you could set "Allowed to push" to "No one", and "Allowed to merge" to "Developers + Masters", to require everyone to submit a merge request for changes going into the protected branch. This is compatible with workflows like the GitLab workflow.

However, there are workflows where that is not needed, and only protecting from force pushes and branch removal is useful. For those workflows, you can allow everyone with write access to push to a protected branch by setting "Allowed to push" to "Developers + Masters".

You can set the "Allowed to push" and "Allowed to merge" options while creating a protected branch or afterwards by selecting the option you want from the dropdown list in the "Already protected" area.

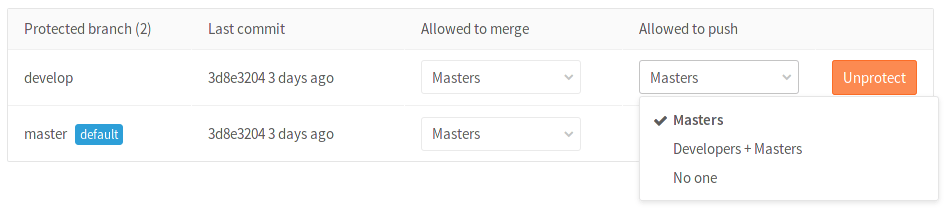

Developers can push

If you don't choose any of those options while creating a protected branch, they are set to "Masters" by default.

Restricting push and merge access to certain users

This feature was introduced in GitLab Enterprise Edition 8.11.

With GitLab Enterprise Edition you can restrict access to protected branches by choosing a role (Masters, Developers) as well as certain users. From the dropdown menu select the role and/or the users you want to have merge or push access.

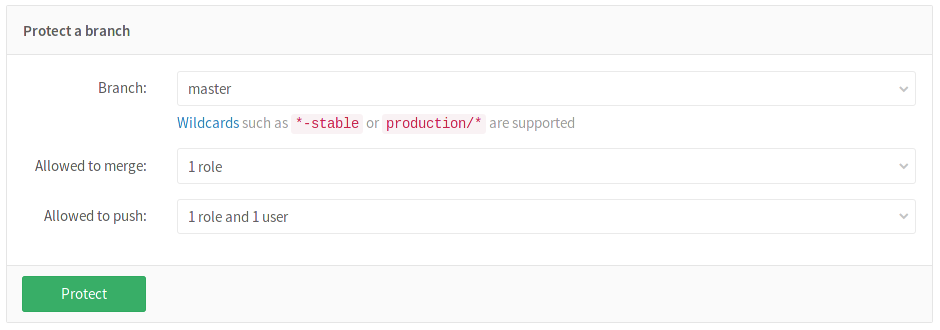

Select roles and users

Click Protect and the branch will appear in the "Protected branch" list.

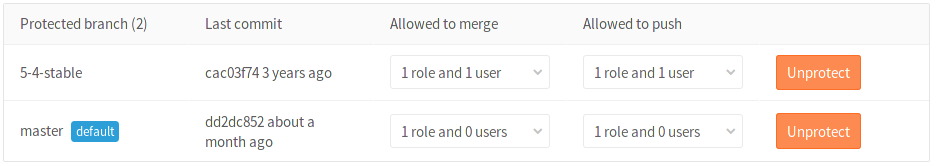

Roles and users list

Wildcard protected branches

Introduced in GitLab 8.10.

You can specify a wildcard protected branch, which will protect all branches matching the wildcard. For example:

Wildcard Protected Branch Matching Branches
*-stable production-stable, staging-stable
production/* production/app-server, production/load-balancer
*gitlab* gitlab, gitlab/staging, master/gitlab/production

Protected branch settings (like "Developers can push") apply to all matching branches.

Two different wildcards can potentially match the same branch. For example, *-stable and production-* would both match a production-stable branch. In that case, if any of these protected branches have a setting like "Allowed to push", then production-stable will also inherit this setting.

If you click on a protected branch's name, you will be presented with a list of all matching branches:

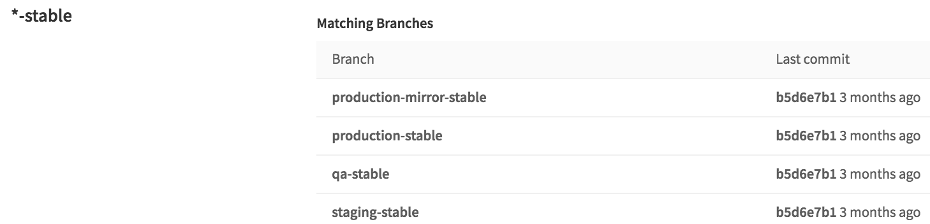

Protected branch matches

Changelog

8.11

8.10
