GitSwarm 2016.3-2 Documentation

Introduction to build artifacts

Artifacts is a list of files and directories which are attached to a build after it completes successfully. This feature is enabled by default in all GitLab installations.

If you are searching for ways to use artifacts, jump to Defining artifacts in .gitlab-ci.yml.

Since GitSwarm 2016.1 and GitLab Runner 0.7.0, build artifacts that are created by GitLab Runner are uploaded to GitSwarm and are downloadable as a single archive (tar.gz) using the GitSwarm UI.

Starting from GitSwarm 2016.1 and GitLab Runner 1.0, the artifacts archive format changed to ZIP, and it is now possible to browse its contents, with the added ability of downloading the files separately.

Note: The artifacts browser will be available only for new artifacts that are sent to GitSwarm using GitLab Runner version 1.0 and up. It will not be possible to browse old artifacts already uploaded to GitSwarm.

Disabling build artifacts

To disable artifacts site-wide, follow the steps below.

In package installations:

Edit /etc/gitswarm/gitswarm.rb and add the following line:
```
gitlab_rails['artifacts_enabled'] = false
```
Save the file and reconfigure GitSwarm for the changes to take effect.

In source installations:

Edit /home/git/gitlab/config/gitlab.yml and add or amend the following lines:
```
artifacts:
  enabled: false
```
Save the file and restart GitSwarm for the changes to take effect.

Defining artifacts in `.gitlab-ci.yml`

A simple example of using the artifacts definition in .gitlab-ci.yml would be the following:

pdf:
  script: xelatex mycv.tex
  artifacts:
    paths:
    - mycv.pdf

A job named pdf calls the xelatex command in order to build a pdf file from the latex source file mycv.tex. We then define the artifacts paths which in turn are defined with the paths keyword. All paths to files and directories are relative to the repository that was cloned during the build.

For more examples on artifacts, follow the separate artifacts yaml documentation.

Storing build artifacts

After a successful build, GitLab Runner uploads an archive containing the build artifacts to GitSwarm.

To change the location where the artifacts are stored, follow the steps below.

In package installations:

The artifacts are stored by default in /var/opt/gitswarm/gitlab-rails/shared/artifacts.

To change the storage path for example to /mnt/storage/artifacts, edit /etc/gitswarm/gitswarm.rb and add the following line:
```
gitlab_rails['artifacts_path'] = "/mnt/storage/artifacts"
```
Save the file and reconfigure GitSwarm for the changes to take effect.

In source installations:

The artifacts are stored by default in /home/git/gitlab/shared/artifacts.

To change the storage path for example to /mnt/storage/artifacts, edit /home/git/gitlab/config/gitlab.yml and add or amend the following lines:
```
artifacts:
  enabled: true
  path: /mnt/storage/artifacts
```
Save the file and restart GitSwarm for the changes to take effect.

Browsing build artifacts

When GitSwarm receives an artifacts archive, an archive metadata file is also generated. This metadata file describes all the entries that are located in the artifacts archive itself. The metadata file is in a binary format, with additional GZIP compression.

GitSwarm does not extract the artifacts archive in order to save space, memory and disk I/O. It instead inspects the metadata file which contains all the relevant information. This is especially important when there is a lot of artifacts, or an archive is a very large file.

After a successful build, if you visit the build's specific page, you can see that there are two buttons.

One is for downloading the artifacts archive and the other for browsing its contents.

Build artifacts browser button

The archive browser shows the name and the actual file size of each file in the archive. If your artifacts contained directories, then you are also able to browse inside them.

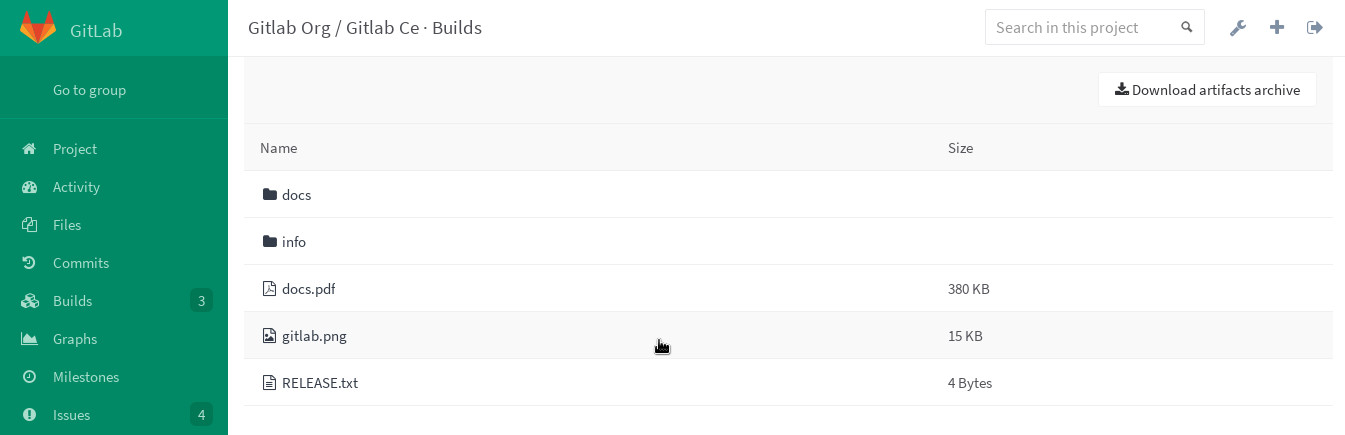

Below you can see an image of three different file formats, as well as two directories.

Build artifacts browser

Downloading build artifacts

If you need to download the whole archive, there are buttons in various places inside GitSwarm that make that possible.

While on the builds page, you can see the download icon for each build's artifacts archive in the right corner
While inside a specific build, you are presented with a download button along with the one that browses the archive
And finally, when browsing an archive you can see the download button at the top right corner

Note that GitSwarm does not extract the entire artifacts archive to send just a single file to the user.

When clicking on a specific file, GitLab Workhorse extracts it from the archive and the download begins.

This implementation saves space, memory and disk I/O.
