GitSwarm 2016.3-2 Documentation

GitSwarm Container Registry

Note: This feature was introduced in GitSwarm 2016.2. Docker Registry manifest v1 support was added in GitLab 8.9 to support Docker versions earlier than 1.10.

Note: This document is about the user guide. To learn how to enable GitSwarm Container Registry across your GitSwarm instance, visit the administrator documentation.

With the Docker Container Registry integrated into GitSwarm, every project can have its own space to store its Docker images.

You can read more about Docker Registry at https://docs.docker.com/registry/introduction/.

Enable the Container Registry for your project

  1. First, ask your system administrator to enable GitSwarm Container Registry following the administration documentation. If you are using GitLab.com, this is enabled by default so you can start using the Registry immediately.

  2. Go to your project's settings and enable the Container Registry feature on your project. For new projects this might be enabled by default. For existing projects you will have to explicitly enable it.

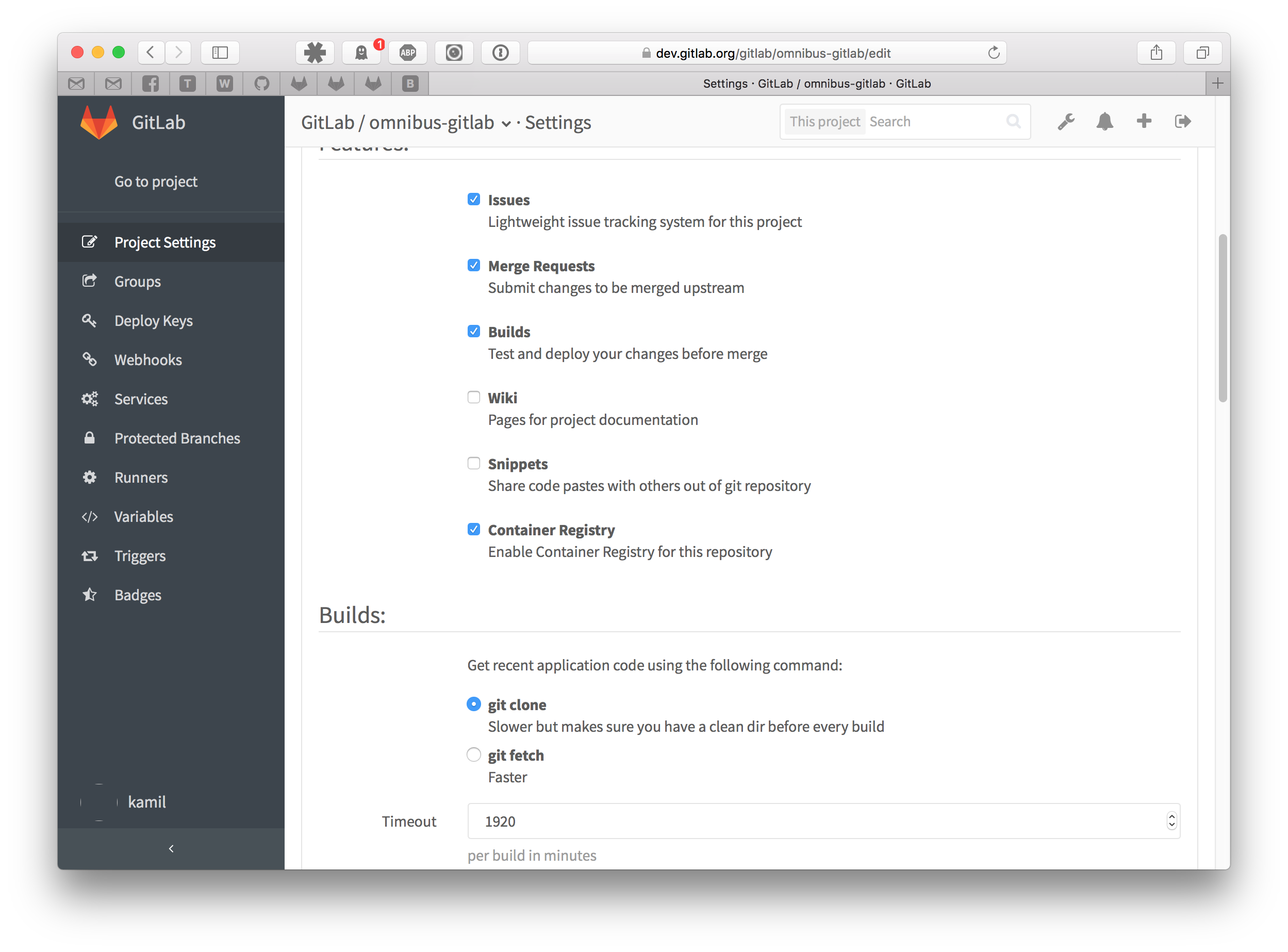

    Enable Container Registry

Build and push images

After you save your project's settings, you should see a new link in the sidebar called Container Registry. Following this link will get you to your project's Registry panel where you can see how to login to the Container Registry using your GitSwarm credentials.

For example if the Registry's URL is registry.example.com, the you should be able to login with:

docker login registry.example.com

Building and publishing images should be a straightforward process. Just make sure that you are using the Registry URL with the namespace and project name that is hosted on GitSwarm:

docker build -t registry.example.com/group/project .
docker push registry.example.com/group/project

Use images from GitSwarm Container Registry

To download and run a container from images hosted in GitSwarm Container Registry, use docker run:

docker run [options] registry.example.com/group/project [arguments]

For more information on running Docker containers, visit the Docker documentation.

Control Container Registry from within GitSwarm

GitSwarm offers a simple Container Registry management panel. Go to your project and click Container Registry in the left sidebar.

This view will show you all tags in your project and will easily allow you to delete them.

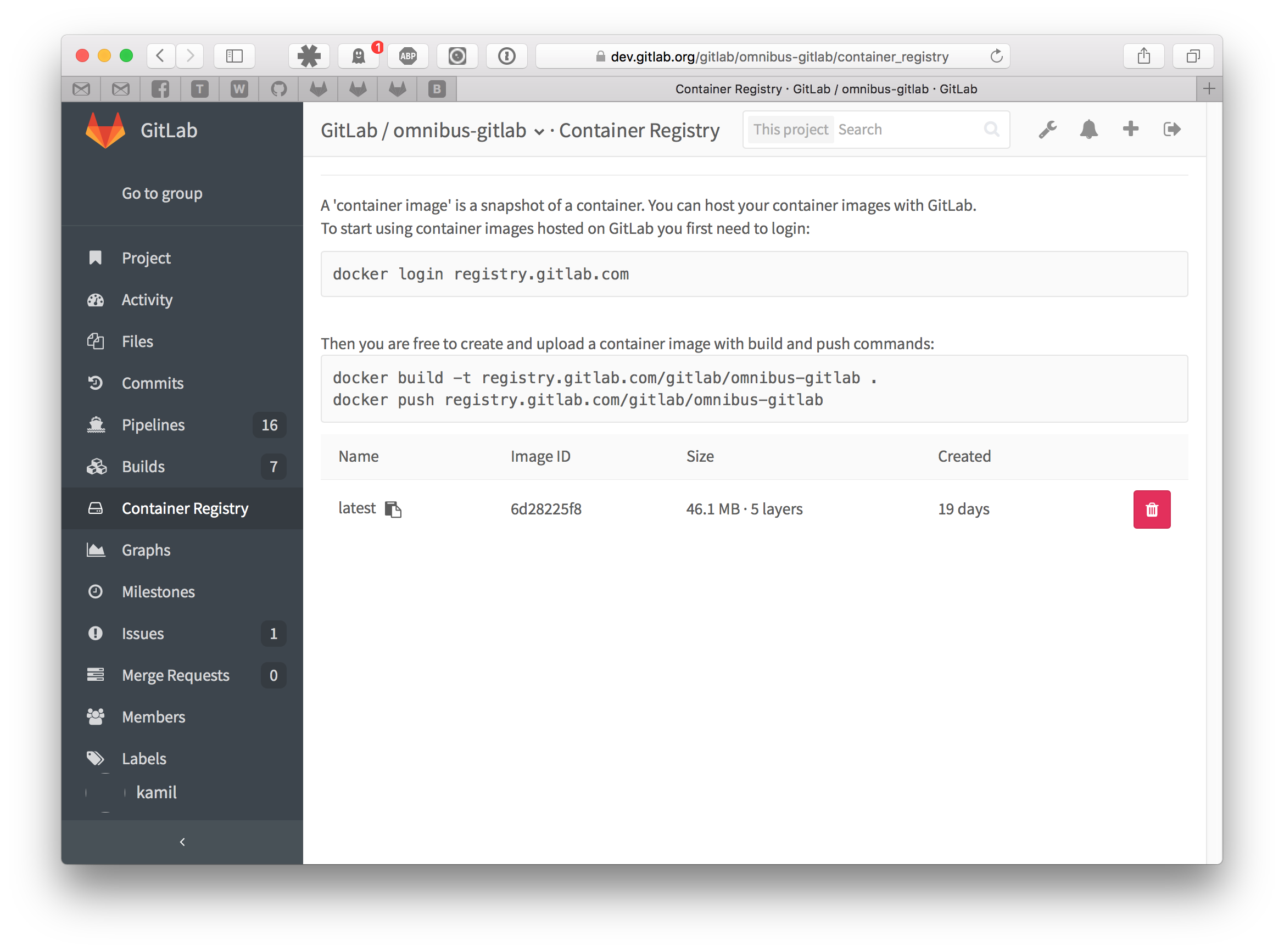

Container Registry panel

Build and push images using GitLab CI

Note: This feature requires GitSwarm 2016.2 and GitLab Runner 1.2.

Make sure that your GitLab Runner is configured to allow building docker images. You have to check the Using Docker Build documentation. Then see the CI documentation on Using the GitSwarm Container Registry.

Limitations

In order to use a container image from your private project as an image: in your .gitlab-ci.yml, you have to follow the Using a private Docker Registry documentation. This workflow will be simplified in the future.
