About P4V icons

P4V uses a variety of icons and badges (decorations) to depict Helix Server objects and their status. The following table describes commonly encountered icons.

P4V displays file icons in the Tree pane and throughout the user interface, with file status indicated as shown in the following table. Note that file icons might be displayed with multiple "badges" (for example, check marks, lock indicators), each indicating an aspect of the file’s status. This table does not list all possible combinations. Note that red badges indicate actions taken by you, and blue badges indicate actions taken by another user.

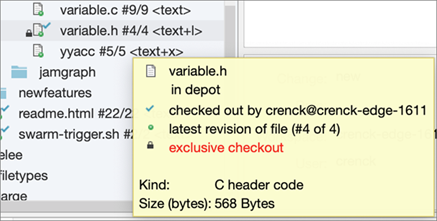

To display a tooltip containing more details about a file’s status, hover the mouse pointer over the file. For example, this tooltip indicates another user has an "exclusive checkout" on the variable.h file:

Category Icon Description

Files

p4v file txt

File in depot


p4v file notmapped

File in depot but not mapped by workspace view


p4v file differs

File in workspace differs from head revision


p4v file ws

File in workspace but not in depot


p4v file sync

File synced to head revision


p4v file notsync

File synced to previous revision


p4v file needs resolve

File needs to be resolved


p4v file lock

File locked by you



File globally locked by you



File locked (or globally locked) by other user


p4v file add

File open for add by you (red "+")


p4v file add other ws

File open for add in other workspace (blue "+")


p4v file edit head

File open for edit by you (red check mark)


p4v file edit other

File open for edit by other user (blue check mark)


p4v file delete

File open for delete by you (red "x")


p4v file delete other

File open for delete by other user (blue "x")


p4v file deleted

File deleted in depot


p4v move

File open for rename/move ("+" indicates target)



File open for rename/move ("x" indicates source)


p4v file branch

File open for branch

  p4v file branch by other user

File open for branch by other user

  File open for integrate (no resolve needed)

p4v file integ

File open for integrate (will need resolve)



File open for integrate by another user


file import

File imported from another stream (cannot be submitted to current stream)

  File is "ditto" mapped to more than one directory in the workspace

p4v symlink

Symbolic link

Streams Stream on the Streams tab. If deleted,
Repo Files Repo file synced to headBlob and at headCommit
Repo file at headBlob but not at headCommit
p4v file notsync Repo file not at headBlob and not at headCommit

Changelists

A pending changelistClosedA changelist that has not been submitted., such as the default changelist, is listed first on the Pending Changelists tab

  shelved file Shelved file in a pending changelist

pending resolve icon

Pending changelist has files that need resolve


pending shelved icon

Pending changelist contains shelved files

  pending empty icon

Pending changelist has no open files

  Pending changelist in another workspace Pending changelist not associated with the current workspace or user, with or without open files
  Shelved items
  Shelved items "globally" accessible because promoted from edge to commit

Folders

folderdepot

(Blue folder) A folder in the Helix Server depot


folderworkspace

(Yellow folder) A folder in your client workspace

  D1 is a folder of the //flow/D1 stream in the stream depot named flow.
  A folder that maps to a Graph repo

Depots

Classic depotClosedA repository of Helix Core files that is not streams-based. Uses the Perforce file revision model, not the graph model. The default depot name is depot. See also default depot, stream depot, and graph depot.


remotedepot

Remote depot: if configured by your Helix Server administrator, a remote depot maps a portion of another Helix Server repository as if it were a depot. Typically used to enable you to import and export third-party files without providing outsiders with access to your Helix Server.

  stream depot icon Stream depot: A depot where streamClosedA "branch" with built-in rules that determine what changes should be propagated to files in a stream depot, and in what order they should be propagated. A stream spec defines a stream. A user creates a stream spec by using either the "p4 stream" command or in P4V with File > New Stream. In P4V, stream specs are visible in the Streams Graph and the Streams tab. files are stored. (Stream specs are represented in the Stream Graph (see Stream hierarchy in the Stream Graph) and the Streams tab (see Viewing and adding tabs).


Spec depot: when enabled by your Helix Server administrator, a spec depot stores the history of changes to Helix Server specifications, such as changelistsClosedA list of files, their version numbers, the changes made to the files, and a description of the changes made. A changelist is the basic unit of versioned work in Helix Server. The changes specified in the changelist are not stored in the depot until the changelist is submitted to the depot. See also atomic change transaction and changelist number..

  Graph depot: A depot for storing files in a repo , which uses the graph model associated with git instead of the "classic" Perforce file revision model.

Workspaces

Workspace associated with a depot

Workspace associated with a classic depot


Workspace associated with a stream

Workspace associated with a stream depot

  Workspace when stream spec is checked out for edit
  Workspace associated with a graph depot, which might or might not be a hybrid workspaceClosedA workspace that supports both repos of type graph (see "Git Connector"), and the Helix Core file revision model.
Swarm Pending changelist with shelved files in Swarm review

Pending changelist with shelved files in Swarm review



Empty pending changelist with shelved files in Swarm review

  Submitted changelist with Swarm review

Submitted changelist with Swarm review

  Folder History with Swarm review
