About P4V icons

P4V uses a variety of icons and badges (decorations) to depict Helix Server objects and their status. The following table describes commonly encountered icons.

P4V displays file icons in the Tree pane and throughout the user interface, with file status indicated as shown in the following table. Note that file icons might be displayed with multiple "badges" (for example, check marks, lock indicators), each indicating an aspect of the file’s status. This table does not list all possible combinations. Note that red badges indicate actions taken by you, and blue badges indicate actions taken by another user.

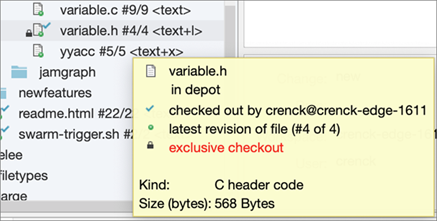

To display a tooltip containing more details about a file’s status, hover the mouse pointer over the file. For example, this tooltip indicates another user has an "exclusive checkout" on the variable.h file:

Category	Icon	Description
Files		File in depot
		File in depot but not mapped by workspace view
		File in workspace differs from head revision
		File in workspace but not in depot
		File synced to head revision
		File synced to previous revision
		File needs to be resolved
		File locked by you
		File globally locked by you
		File locked (or globally locked) by other user
		File open for add by you (red "+")
		File open for add in other workspace (blue "+")
		File open for edit by you (red check mark)
		File open for edit by other user (blue check mark)
		File open for delete by you (red "x")
		File open for delete by other user (blue "x")
		File deleted in depot
		File open for rename/move ("+" indicates target)
		File open for rename/move ("x" indicates source)
		File open for branch
		File open for branch by other user
		File open for integrate (no resolve needed)
		File open for integrate (will need resolve)
		File open for integrate by another user
		File imported from another stream (cannot be submitted to current stream)
		File is "ditto" mapped to more than one directory in the workspace
		Symbolic link
Streams		Stream on the Streams tab. If deleted,
Repo Files		Repo file synced to headBlob and at headCommit
		Repo file at headBlob but not at headCommit
		Repo file not at headBlob and not at headCommit
Changelists		A pending changelist A changelist that has not been submitted., such as the default changelist, is listed first on the Pending Changelists tab
		Shelved file in a pending changelist
		Pending changelist has files that need resolve
		Pending changelist contains shelved files
		Pending changelist has no open files
		Pending changelist not associated with the current workspace or user, with or without open files
		Shelved items
		Shelved items "globally" accessible because promoted from edge to commit
Folders		(Blue folder) A folder in the Helix Server depot
		(Yellow folder) A folder in your client workspace
		`D1` is a folder of the `//flow/D1` stream in the stream depot named `flow`.
		A folder that maps to a Graph repo
Depots		Classic depot A repository of Helix Core files that is not streams-based. Uses the Perforce file revision model, not the graph model. The default depot name is depot. See also default depot, stream depot, and graph depot.
		Remote depot: if configured by your Helix Server administrator, a remote depot maps a portion of another Helix Server repository as if it were a depot. Typically used to enable you to import and export third-party files without providing outsiders with access to your Helix Server.
		Stream depot: A depot where stream A "branch" with built-in rules that determine what changes should be propagated to files in a stream depot, and in what order they should be propagated. A stream spec defines a stream. A user creates a stream spec by using either the "p4 stream" command or in P4V with File > New Stream. In P4V, stream specs are visible in the Streams Graph and the Streams tab. files are stored. (Stream specs are represented in the Stream Graph (see Stream hierarchy in the Stream Graph) and the Streams tab (see Viewing and adding tabs).
		Spec depot: when enabled by your Helix Server administrator, a spec depot stores the history of changes to Helix Server specifications, such as changelists A list of files, their version numbers, the changes made to the files, and a description of the changes made. A changelist is the basic unit of versioned work in Helix Server. The changes specified in the changelist are not stored in the depot until the changelist is submitted to the depot. See also atomic change transaction and changelist number..
		Graph depot: A depot for storing files in a repo , which uses the graph model associated with git instead of the "classic" Perforce file revision model.
Workspaces		Workspace associated with a classic depot
		Workspace associated with a stream depot
		Workspace when stream spec is checked out for edit
		Workspace associated with a graph depot, which might or might not be a hybrid workspace A workspace that supports both repos of type graph (see "Git Connector"), and the Helix Core file revision model.
Swarm		Pending changelist with shelved files in Swarm review
		Empty pending changelist with shelved files in Swarm review
		Submitted changelist with Swarm review
		Folder History with Swarm review
