Perforce 2009.2: Command Reference



p4 protect
Synopsis
Control users' access to files, directories, and commands.
Syntax
p4 [g-opts] protect
p4 [g-opts] protect -o
p4 [g-opts] protect -i
Description
Use p4 protect to control Perforce permissions. You can use p4 protect to:
Grant or deny specific rights to users by using the =read, =open, =write, and =branch rights, without having to re-grant lesser permissions.
Limit access to particular IP addresses, so that only users at these IP addresses can run Perforce.
In general, one typically grants an access level to a user or group, after which, if finer-grained control is required, one or more specific rights can then be denied.

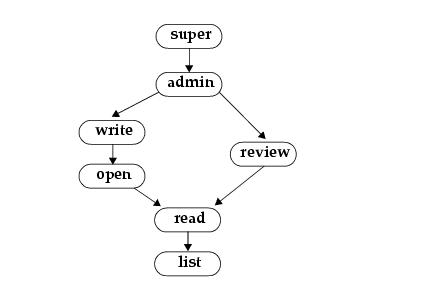

The permission levels and access rights are:
Permission Level / Right
The user can access all Perforce metadata, but has no access to file contents. The user can run all the commands that describe Perforce objects, such as p4 files, p4 client, p4 job, p4 describe, p4 branch, etc.
The user can do everything permitted with list access, and also run any command that involves reading file data, including p4 print, p4 diff, p4 sync, and so on.
This gives the user permission to do everything she can do with read access, and gives her permission to p4 add, p4 edit, p4 delete, and p4 integrate files. However, the user is not allowed to lock files or submit files to the depot.
This permission is meant for external programs that access Perforce. It gives the external programs permission to do anything that list and read can do, and grants permission to run p4 review and p4 counter. It does not include open or write access.
Includes all of the above, including administrative commands that override changes to metadata, but do not affect server operation.
Form Fields
When you run p4 protect, Perforce displays a form with a single field, Protections:. Each permission is specified in its own indented line under the Protections: header, and has five values:
One of the access levels list, read, open, write, review, or super, or one of the rights of =read, =open, =write, and =branch, as defined above
The name of the user or the name of the group, as defined by p4 group. To grant this permission to all users, use the * wildcard.
The IP address. CIDR notation is supported. The * wildcard can also be used to refer to all IP addresses, but only when you are not using CIDR notation.
When exclusionary mappings are not used, a user is granted the highest permission level listed in the union of all the mappings that match the user, the user's IP address, and the files the user is trying to access. In this case, the order of the mappings is irrelevant.
When exclusionary mappings are used, order is relevant: the exclusionary mapping overrides any matching protections listed above it in the table. No matter what access level is being denied in the exclusionary protection, all the access levels for the matching users, files, and IP addresses are denied.
If you use exclusionary mappings to deny access to an area of the depot to members of group1, but grant access to the same area of the depot to members of group2, a user who is a member of both group1 and group2 is either granted or denied access based on whichever line appears last in the protections table.
Options
Usage Notes
Can File Arguments Use
Revision Specifier?
The specific rights of =read, =open, =write, and =branch can be used to override the automatic inclusion of lower access levels. This makes it possible to deny individual rights without having to then re-grant lesser rights.
For example, if you want administrators to have the ability to run administrative commands, but to deny them the ability to make changes in certain parts of the depot, you could set up a permissions table as follows:
admin       user      joe      *             //...
=write     user      joe       *             -//depot/build/...
=open      user      joe       *             -//depot/build/...
In this example, user joe can perform administrative functions, which may include reading or listing files in //depot/build/..., but he is prohibited from opening files for edit (or submitting any changes he might have open.) He can, however, continue to create and modify files outside of the protected //depot/build/... area.
Access levels determine which commands you can use. The following table lists the minimum access level required for each command. For example, because p4 add requires at least open access, you can run p4 add if you have open, write, admin, or super access.
The -f flag to override existing metadata or other users' data requires admin access.
The -f flag to override existing metadata or other users' data requires admin access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -f flag to override existing metadata or other users' data requires admin access.
list access to at least one file in any depot is required to view an existing counter's value; review access is required to change a counter's value or create a new counter.
The -o flag to this command, which allows the form to be read but not edited, requires only list access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -s flag to this command, which does not display file content, requires only list access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -o flag to this command, which allows the form to be read but not edited, requires only list access.
The -a flag to this command requires only list access, provided that the user is also listed as a group owner.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The user must have open access on the target files and read access on the source files.
The -o flag to this command, which allows the form to be read but not edited, requires only list access.
The -f flag to override existing metadata or other users' data requires admin access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -o flag to this command, which allows the form to be read but not edited, requires only list access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -f flag to override existing metadata or other users' data requires admin access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
super access is required to terminate or clear processes, or to view arguments.
super access is required to use the -a, -g, and -u flags.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
The -o flag to this command, which allows the form to be read but not edited, requires only list access.
The -f flag to override existing metadata or other users' data requires admin access.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
This command doesn't operate on specific files. Permission is granted to run the command if the user has the specified access to at least one file in any depot.
When a new Perforce server is installed, anyone who wants to use Perforce is allowed to, and all Perforce users are superusers. The first time anyone runs p4 protect, the invoking user is made the superuser, and everyone else is given write permission on all files. Run p4 protect immediately after installation.
In the course of normal operation, you'll primarily grant users list, read, write, and super access levels. The open and review access levels are used less often.
Those commands that list files, such as p4 describe, will only list those files to which the user has at least list access.
Some commands (for instance, p4 change, when editing a previously submitted changelist) take a -f flag that requires admin or super access.
The open access level gives the user permission to change files but not submit them to the depot. Use this when you're temporarily freezing a codeline, but don't want to stop your developers from working, or when you employ testers who are allowed to change code for their own use but aren't allowed to make permanent changes to the codeline.
The review access level is meant for review daemons that need to access counter values.
If you write a review daemon that requires both review and write access, but shouldn't have super access, grant the daemon both review and write access on two separate lines of the protections table.
To limit or eliminate the use of the files on a particular server as a remote depot from a different server (as defined by p4 depot), create protections for user remote. Remote depots are always accessed by a virtual user named remote.
For further information, see the Protections chapter of the System Administrator's Guide.
Examples
Suppose that user joe is a member of groups devgroup and buggroup, as set by p4 group, and the protections table reads as follows:
super     user      bill       *                  //...
write     group     devgroup   *                  //depot/...
write     group     buggroup   *                  -//depot/proj/...
write     user      joe        192.168.100.0/24   //...
Joe attempts a number of operations. His success or failure at each is described below:
Succeeds. The second line grants Joe write access on these files; write access includes read access, and this protection isn't excluded by any subsequent lines.
Fails. The third line removes all of Joe's permissions on any files in this directory. (If the second protection and the third protection had been switched, then the subsequent protection would have overridden this one, and Joe would have succeeded).
Succeeds. Joe is sitting at an IP address from which he is granted this permission in the fourth line.
Fails. p4 verify requires super access; Joe doesn't have this access level no matter which IP address he's coming from.
Related Commands
