Projects

A Swarm projectIn Helix Swarm, a group of Helix Server users who are working together on a specific codebase, defined by one or more branches of code, along with options for a job filter, automated test integration, and automated deployment. is made up of a group of Helix Server users who are working together on one or more codelines within the Helix Server. A project's definition includes one or more branches of code, and optionally a jobA user-defined unit of work tracked by Helix Server. The job template determines what information is tracked. The template can be modified by the Helix Server system administrator. A job describes work to be done, such as a bug fix. Associating a job with a changelist records which changes fixed the bug. filter, automated test integration, and automated deployment. This section provides an introduction to the interactions users have with projects. For details about managing projects, see Projects.

Listing projects

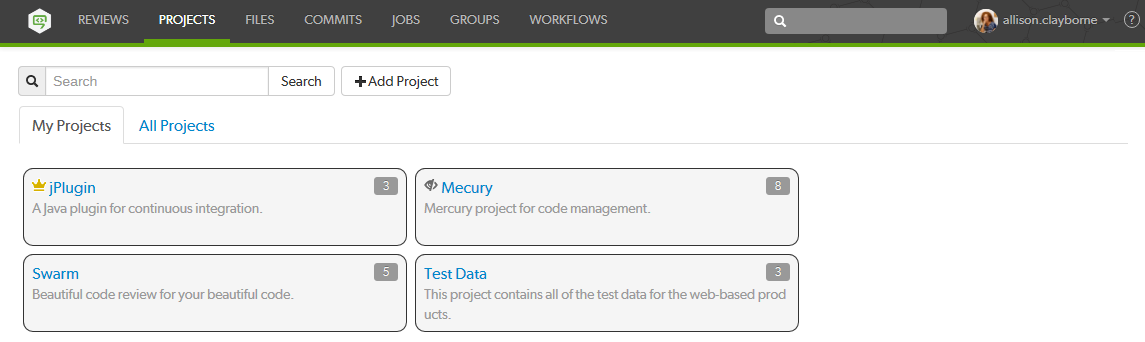

To view a list of projects, click the Projects link in the main toolbar.

Logged-in users can choose which projects to display by clicking on the My Projects tab or the All Projects tab. Anonymous users only see the public projects, the My Projects tab is not available to anonymous users:

• The My Projects: tab lists all of the projects that you are an owner of or a member of.
• The All Projects: tab lists all of the available projects.

Search project names and project descriptions

You can search for Swarm project names and for the content of the project description from the projects page:

1. Enter text in the search box.
2. Click Search.

Any project names, and descriptions that match the search text are displayed in the project tab:

Viewing a project

View a project by doing one of the following:

• Click on the project name in the projects list on the Swarm Projects page.
• Click on the project name or branch identifier in an activity stream.
• Visit the URL: https://myswarm.url/projects/project-name

Overview tab

The project Overview tab shows a description of the project.

The following information is displayed in the project sidebar:

• A short description of the project
• A Follow button, click to follow the project. This button is not available if you are a member of the project.
• A list of project owners
• A list of project moderators
• A list of project members
• A list of project followers
• A list of the branches defined for the project

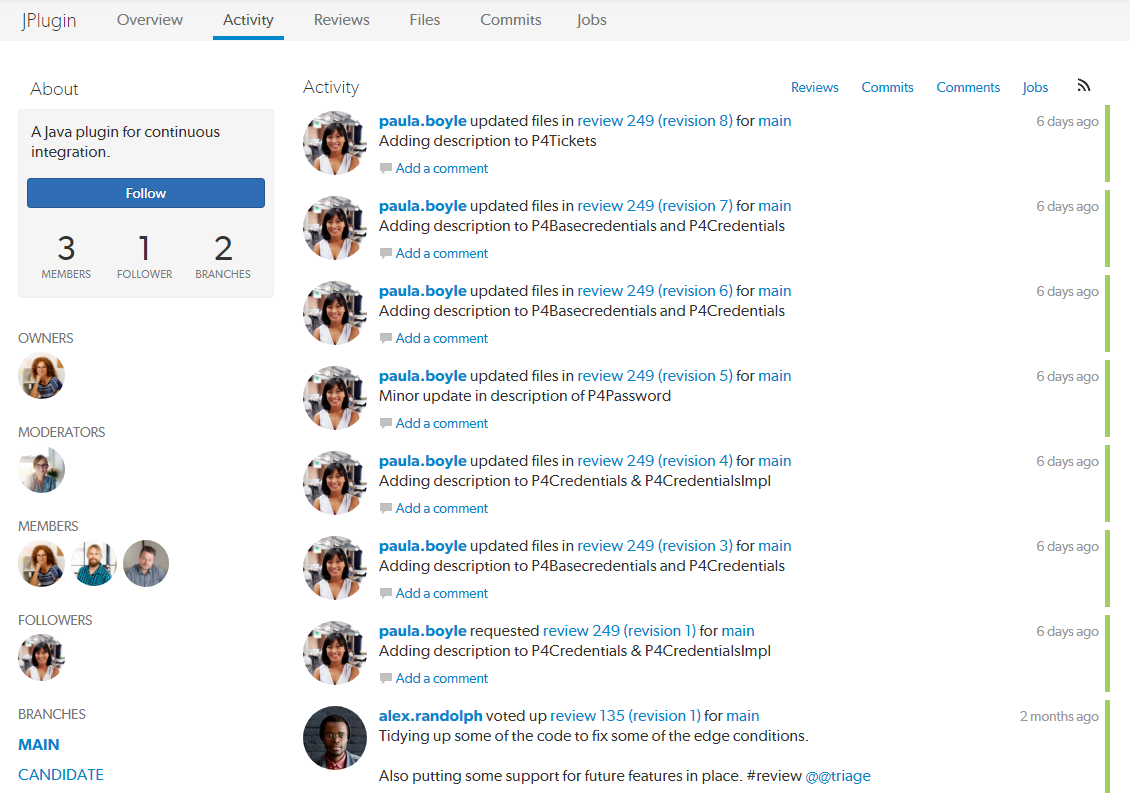

Activity tab

The project Activity tab shows the activity stream for the project

The following information is displayed in the project sidebar:

• A short description of the project
• A Follow button, click to follow the project. This button is not available if you are a member of the project.
• A list of project owners
• A list of project moderators
• A list of project members
• A list of project followers
• A list of the branches defined for the project

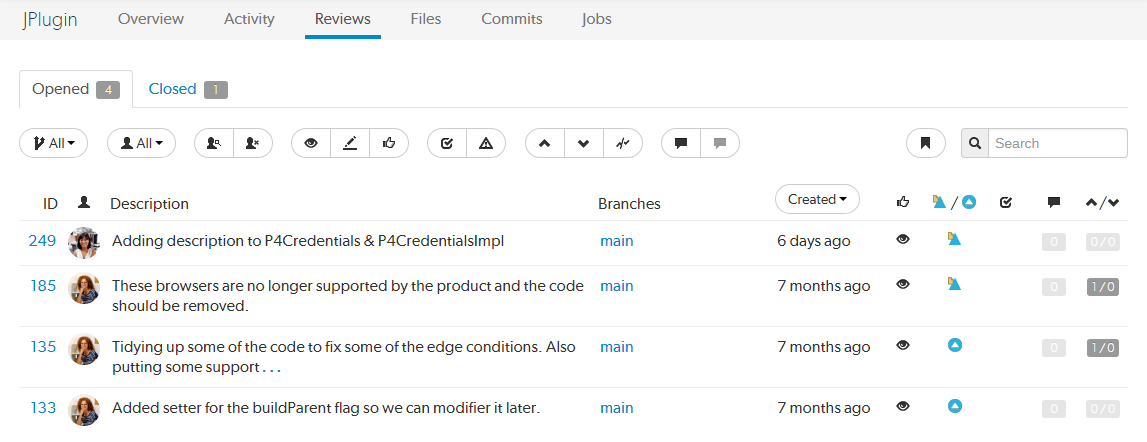

Reviews tab

The project Reviews tab shows a list of code reviews specific to the project.

For more details on browsing, filtering, and searching reviews, see Reviews list.

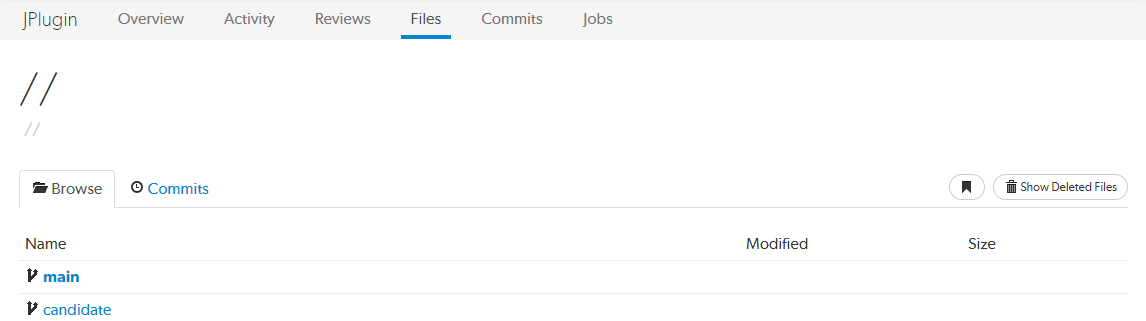

Files tab

The project Files tab shows a list of files for the project, starting with a folder view representing each branch. Branches are designated with the branch icon .

The project's main branch, identified by using a name such as main, mainline, master, trunk, is sorted to the top of the list of branches and appears in bold. The list of names can be configured, see Mainline branch identification for details.

For more information on browsing files, see Files.

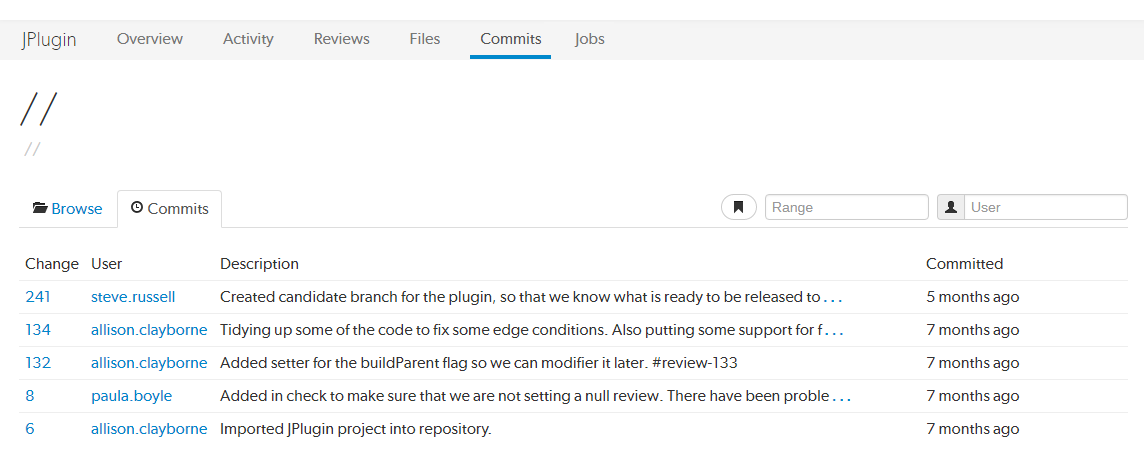

Commits tab

The project Commits tab shows a list of changes made to the project.

For more details on history browsing, see Commits.

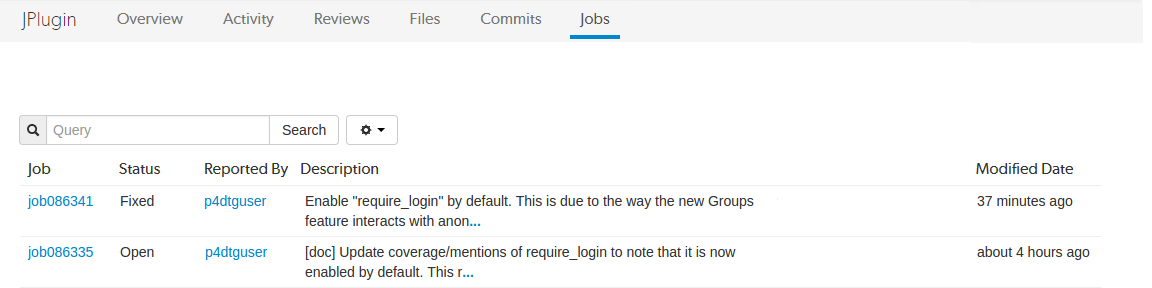

Jobs tab

The project Jobs tab shows a list of jobs associated with the project.

For more details on browsing and searching jobs, see Jobs.

Private projects

Private projects, introduced in Swarm 2016.2, provide a way to make specific projects and their activity less visible to Swarm users. When a project is made private, only the projects owners, moderators, and members, plus users with super privileges in the Helix Server, can see the project, its activity streams, and ongoing reviews.

If you are logged in as an owner, moderator, or member of a private Swarm project, that project appears on the Swarm project page with an eye icon to indicate that it is private and has limited visibility:

Similarly, the eye icon appears beside the project's title when viewing the project. When you hover your mouse over the eye icon, a tooltip appears indicating that this project is indeed private.

Caveats

The following are important caveats regarding private projects:

• While Swarm can mask the existence of projects, their activity, and reviews, Swarm honors each user's access to files within the Helix Server. This means that users that have access to the files in a private project's branches can browse to those branch paths within the depot and see the files and any committed changes.
• If you need to prevent access to important files, your Helix Server administrator is required to manage the protections table accordingly. For details, see Authorizing Access in the Helix Core Server Administrator Guide: Fundamentals.
• It is possible for a user to start a review that touches files that belong to a private project. If the user is not a member, owner, or moderator of the private project, or does not have super privileges in the Helix Server, they cannot participate in the review.
• If a user is not a member, owner, or moderator of a private project, or does not have super privileges in the Helix Server, and they are added as a review participant (via an @mention or by editing a review's participants) to a review containing files within the private project's branches, that user cannot participate in the review: the user cannot see the review, its files, or comments. Due to limitations in how Swarm sends email notifications, such users could still receive notifications for reviews they cannot participate in.
• Notifications usually include links and mentions of the associated projects. Notifications involving private projects are filtered to remove any references to those private projects.
